Example Programs¶

C++ Example¶

Application Level Example:¶

 #include <dftracer/dftracer.h>

 void foo() {
   DFTRACER_CPP_FUNCTION(); // Add at the begining of each function
   sleep(1);
   {
     DFTRACER_CPP_REGION(CUSTOM); // Add at the beginning of code block. keep name unique
     sleep(1);
     DFTRACER_CPP_REGION_START(CUSTOM_BLOCK); // add start. keep name unique
     sleep(1);
     DFTRACER_CPP_REGION_END(CUSTOM_BLOCK); // add end. Match name from START.
   }
 }

 int main(int argc, char *argv[]) {
   // Basic Bookkeeping
   int init = 0;
   if (argc > 2) {
     if (strcmp(argv[2], "1") == 0) {
       // Initialize Application Profiler
       DFTRACER_CPP_INIT(nullptr, nullptr, nullptr);
       init = 1;
     }
   }
   char filename[1024];
   sprintf(filename, "%s/demofile.txt", argv[1]);

   // Run functions
   foo();
   // Implicit I/O calls No need for marking.
   FILE *fh = fopen(filename, "w+");
   if (fh != NULL) {
     fwrite("hello", sizeof("hello"), 1, fh);
     fclose(fh);
   }
   if (init == 1) {
     // Finalize Application Profiler
     DFTRACER_CPP_FINI();
   }
   return 0;
 }

For this example, link with libdftracer.so at compile time. As the DFTRACER_CPP_INIT do not pass log file or data dir, we need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. By default the DFTracer mode is set to FUNCTION. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Enable profiler
 DFTRACER_ENABLE=1

LD_PRELOAD Example:¶

 #include <dftracer/dftracer.h>

 int main(int argc, char *argv[]) {
   char filename[1024];
   sprintf(filename, "%s/demofile.txt", argv[1]);
   foo(); # function will be ignored in pure LD_PRELOAD mode.
   // Implicit I/O calls No need for marking.
   FILE *fh = fopen(filename, "w+");
   if (fh != NULL) {
     fwrite("hello", sizeof("hello"), 1, fh);
     fclose(fh);
   }
   return 0;
 }

For this example, LD_PRELOAD the executable with libdftracer_preload.so at runtime. We need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 export DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 export DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Set the mode to PRELOAD
 export DFTRACER_INIT=PRELOAD
 # Enable profiler
 export DFTRACER_ENABLE=1

Hybrid Example:¶

 #include <dftracer/dftracer.h>

 void foo() {
   DFTRACER_CPP_FUNCTION(); // Add at the begining of each function
   sleep(1);
   {
     DFTRACER_CPP_REGION(CUSTOM); // Add at the beginning of code block. keep name unique
     sleep(1);
     DFTRACER_CPP_REGION_START(CUSTOM_BLOCK); // add start. keep name unique
     sleep(1);
     DFTRACER_CPP_REGION_END(CUSTOM_BLOCK); // add end. Match name from START.
   }
 }

 int main(int argc, char *argv[]) {
   // Basic Bookkeeping
   int init = 0;
   if (argc > 2) {
     if (strcmp(argv[2], "1") == 0) {
       // Initialize Application Profiler
       DFTRACER_CPP_INIT(nullptr, nullptr, nullptr);
       init = 1;
     }
   }
   char filename[1024];
   sprintf(filename, "%s/demofile.txt", argv[1]);

   // Run functions
   foo();
   // Implicit I/O calls No need for marking.
   FILE *fh = fopen(filename, "w+");
   if (fh != NULL) {
     fwrite("hello", sizeof("hello"), 1, fh);
     fclose(fh);
   }
   if (init == 1) {
     // Finalize Application Profiler
     DFTRACER_CPP_FINI();
   }
   return 0;
 }

For this example, link with libdftracer.so at compile time and LD_PRELOAD the executable with libdftracer_preload.soat runtime. As the DFTRACER_CPP_INIT do not pass log file or data dir, we need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. By default the DFTracer mode is set to FUNCTION. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Set the mode to PRELOAD
 export DFTRACER_INIT=PRELOAD
 # Enable profiler
 DFTRACER_ENABLE=1

C Example¶

Application Level Example:¶

 #include <dftracer/dftracer.h>

 void foo() {
   DFTRACER_C_FUNCTION_START();
   sleep(1);
   if (<CONDITION>) {
     DFTRACER_C_FUNCTION_END();
     return; // Define DFTRACER_C_FUNCTION_END on every branch
   }
   {
     DFTRACER_C_REGION_START(CUSTOM);
     sleep(1);
     DFTRACER_C_REGION_END(CUSTOM); // END region CUSTOM.
   }
   DFTRACER_C_FUNCTION_END(); // Define DFTRACER_C_FUNCTION_END on every branch
 }

 int main(int argc, char *argv[]) {
   // Basic Bookkeeping
   int init = 0;
   if (argc > 2) {
     if (strcmp(argv[2], "1") == 0) {
       // Initialize Application Profiler
       DFTRACER_C_INIT(nullptr, nullptr, nullptr);
       init = 1;
     }
   }
   char filename[1024];
   sprintf(filename, "%s/demofile.txt", argv[1]);

   // Run functions
   foo();
   // Implicit I/O calls No need for marking.
   FILE *fh = fopen(filename, "w+");
   if (fh != NULL) {
     fwrite("hello", sizeof("hello"), 1, fh);
     fclose(fh);
   }
   if (init == 1) {
     // Finalize Application Profiler
     DFTRACER_C_FINI();
   }
   return 0;
 }

For this example, link with libdftracer.so at compile time. As the DFTRACER_CPP_INIT do not pass log file or data dir, we need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. By default the DFTracer mode is set to FUNCTION. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Enable profiler
 DFTRACER_ENABLE=1

LD_PRELOAD Example:¶

 #include <dftracer/dftracer.h>

 int main(int argc, char *argv[]) {
   char filename[1024];
   sprintf(filename, "%s/demofile.txt", argv[1]);
   foo(); # function will be ignored in pure LD_PRELOAD mode.
   // Implicit I/O calls No need for marking.
   FILE *fh = fopen(filename, "w+");
   if (fh != NULL) {
     fwrite("hello", sizeof("hello"), 1, fh);
     fclose(fh);
   }
   return 0;
 }

For this example, LD_PRELOAD the executable with libdftracer_preload.so at runtime. We need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 export DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 export DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Set the mode to PRELOAD
 export DFTRACER_INIT=PRELOAD
 # Enable profiler
 export DFTRACER_ENABLE=1

Hybrid Example:¶

 #include <dftracer/dftracer.h>

 void foo() {
   DFTRACER_C_FUNCTION_START();
   sleep(1);
   if (<CONDITION>) {
     DFTRACER_C_FUNCTION_END();
     return; // Define DFTRACER_C_FUNCTION_END on every branch
   }
   {
     DFTRACER_C_REGION_START(CUSTOM);
     sleep(1);
     DFTRACER_C_REGION_END(CUSTOM); // END region CUSTOM.
   }
   DFTRACER_C_FUNCTION_END(); // Define DFTRACER_C_FUNCTION_END on every branch
 }

 int main(int argc, char *argv[]) {
   // Basic Bookkeeping
   int init = 0;
   if (argc > 2) {
     if (strcmp(argv[2], "1") == 0) {
       // Initialize Application Profiler
       DFTRACER_C_INIT(nullptr, nullptr, nullptr);
       init = 1;
     }
   }
   char filename[1024];
   sprintf(filename, "%s/demofile.txt", argv[1]);

   // Run functions
   foo();
   // Implicit I/O calls No need for marking.
   FILE *fh = fopen(filename, "w+");
   if (fh != NULL) {
     fwrite("hello", sizeof("hello"), 1, fh);
     fclose(fh);
   }
   if (init == 1) {
     // Finalize Application Profiler
     DFTRACER_C_FINI();
   }
   return 0;
 }

For this example, link with libdftracer.so at compile time and LD_PRELOAD the executable with libdftracer_preload.so at runtime. As the DFTRACER_CPP_INIT do not pass log file or data dir, we need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. By default the DFTracer mode is set to FUNCTION. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Set the mode to PRELOAD
 export DFTRACER_INIT=PRELOAD
 # Enable profiler
 DFTRACER_ENABLE=1

Python Example¶

Application Level Example:¶

 from dftracer.logger import dftracer, dft_fn
 log_inst = dftracer.initialize_log(logfile=None, data_dir=None, process_id=-1)
 dft_fn = dft_fn("COMPUTE")

 # Example of using function decorators
 @dft_fn.log
 def log_events(index):
     sleep(1)

 # Example of function spawning and implicit I/O calls
 def posix_calls(val):
     index, is_spawn = val
     path = f"{cwd}/data/demofile{index}.txt"
     f = open(path, "w+")
     f.write("Now the file has more content!")
     f.close()
     if is_spawn:
         print(f"Calling spawn on {index} with pid {os.getpid()}")
         log_inst.finalize() # This need to be called to correctly finalize DFTracer.
     else:
         print(f"Not calling spawn on {index} with pid {os.getpid()}")

 # NPZ calls internally calls POSIX calls.
 def npz_calls(index):
     # print(f"{cwd}/data/demofile2.npz")
     path = f"{cwd}/data/demofile{index}.npz"
     if os.path.exists(path):
         os.remove(path)
     records = np.random.randint(255, size=(8, 8, 1024), dtype=np.uint8)
     record_labels = [0] * 1024
     np.savez(path, x=records, y=record_labels)

 def main():
     log_events(0)
     npz_calls(1)
     with get_context('spawn').Pool(1, initializer=init) as pool:
         pool.map(posix_calls, ((2, True),))
     log_inst.finalize()


 if __name__ == "__main__":
     main()

For this example, as the DFTRACER_CPP_INIT do not pass log file or data dir, we need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. By default the DFTracer mode is set to FUNCTION. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset:$PWD/data
 # Enable profiler
 DFTRACER_ENABLE=1

LD_PRELOAD Example:¶

 # Example of function spawning and implicit I/O calls
 def posix_calls(val):
     index, is_spawn = val
     path = f"{cwd}/data/demofile{index}.txt"
     f = open(path, "w+")
     f.write("Now the file has more content!")
     f.close()
     if is_spawn:
         print(f"Calling spawn on {index} with pid {os.getpid()}")
     else:
         print(f"Not calling spawn on {index} with pid {os.getpid()}")

 # NPZ calls internally calls POSIX calls.
 def npz_calls(index):
     # print(f"{cwd}/data/demofile2.npz")
     path = f"{cwd}/data/demofile{index}.npz"
     if os.path.exists(path):
         os.remove(path)
     records = np.random.randint(255, size=(8, 8, 1024), dtype=np.uint8)
     record_labels = [0] * 1024
     np.savez(path, x=records, y=record_labels)

 def main():
     npz_calls(1)
     with get_context('spawn').Pool(1, initializer=init) as pool:
         pool.map(posix_calls, ((2, True),))

 if __name__ == "__main__":
     main()

For this example, LD_PRELOAD the executable with libdftracer_preload.so at runtime. We need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 export DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 export DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Set the mode to PRELOAD
 export DFTRACER_INIT=PRELOAD
 # Enable profiler
 export DFTRACER_ENABLE=1

Hybrid Example:¶

 from dftracer.logger import dftracer, dft_fn
 log_inst = dftracer.initialize_log(logfile=None, data_dir=None, process_id=-1)
 dft_fn = dft_fn("COMPUTE")

 # Example of using function decorators
 @dft_fn.log
 def log_events(index):
     sleep(1)

 # Example of function spawning and implicit I/O calls
 def posix_calls(val):
     index, is_spawn = val
     path = f"{cwd}/data/demofile{index}.txt"
     f = open(path, "w+")
     f.write("Now the file has more content!")
     f.close()
     if is_spawn:
         print(f"Calling spawn on {index} with pid {os.getpid()}")
         log_inst.finalize() # This need to be called to correctly finalize DFTracer.
     else:
         print(f"Not calling spawn on {index} with pid {os.getpid()}")

 # NPZ calls internally calls POSIX calls.
 def npz_calls(index):
     # print(f"{cwd}/data/demofile2.npz")
     path = f"{cwd}/data/demofile{index}.npz"
     if os.path.exists(path):
         os.remove(path)
     records = np.random.randint(255, size=(8, 8, 1024), dtype=np.uint8)
     record_labels = [0] * 1024
     np.savez(path, x=records, y=record_labels)

 def main():
     log_events(0)
     npz_calls(1)
     with get_context('spawn').Pool(1, initializer=init) as pool:
         pool.map(posix_calls, ((2, True),))
     log_inst.finalize()


 if __name__ == "__main__":
     main()

For this example, use LD_PRELOAD the executable with libdftracer_preload.soat runtime. As the DFTRACER_CPP_INIT do not pass log file or data dir, we need to set DFTRACER_LOG_FILE and DFTRACER_DATA_DIR. By default the DFTracer mode is set to FUNCTION. Example of running this configurations are:

 # the process id, app_name and .pfw will be appended by the profiler for each app and process.
 # name of final log file is ~/log_file-<APP_NAME>-<PID>.pfw
 DFTRACER_LOG_FILE=~/log_file
 # Colon separated paths for including for profiler
 DFTRACER_DATA_DIR=/dev/shm/:/p/gpfs1/$USER/dataset
 # Set the mode to PRELOAD
 export DFTRACER_INIT=PRELOAD
 # Enable profiler
 DFTRACER_ENABLE=1

Resnet50 with pytorch and torchvision example from ALCF Polaris:¶

Create a separate conda environment for the application and install dftracer

  #!/bin/bash +x
  set -e
  set -x
  export MODULEPATH=/soft/modulefiles/conda/:$MODULEPATH
  module load 2023-10-04  # This is the latest conda module on Polaris

  export ML_ENV=$PWD/PolarisAT/conda-envs/ml_workload_latest_conda_2 # Please change the following path accordingly

  if [[ -e $ML_ENV ]]; then
      conda activate $ML_ENV
  else
      conda create  -p $ML_ENV --clone  /soft/datascience/conda/2023-10-04/mconda3/
      conda activate $ML_ENV
      yes | MPICC="cc -shared -target-accel=nvidia80" pip install --force-reinstall --no-cache-dir --no-binary=mpi4py mpi4py
      yes | pip install --no-cache-dir git+https://github.com/hariharan-devarajan/dftracer.git
      pip uninstall -y torch horovod
      yes | pip install --no-cache-dir horovod
      #INSTALL OTHER MISSING FILES
  fi

Since, torchvision.datasets.ImageFolder spawns separate python processes to help the parallel data loading in torch, we will be using the HYBRID MODE of the DFTracer (e.g., see Python Hybrid mode), so that the application can use both APP and PRELOAD Mode to log I/O from all dynamically spawned processes and function profiling from application.

The following dftracer code is added to profile the application at the function level. Note: dftracer python level log file location is provided inside the python code in the dftracer.initialize_log() function and the POSIX or STDIO calls level log file location is provided in the job scirpt environment variable DFTRACER_LOG_FILE

  ...
  # From the preamble
  from dftracer.logger import dftracer as logger, dft_fn as dft_event_logging
  dft_pid=os.getpid()
  log_inst=logger.initialize_log(f"./resnet50/dft_fn_py_level-{dft_pid}.pfw", "", dft_pid)
  compute_dft = dft_event_logging("Compute")
  io_dft = dft_event_logging("IO", name="real_IO")
  ...
  # From the train() function
  for i, (images, target) in io_dft.iter(enumerate(train_loader)):
        with dft_event_logging("communication-except-io", name="cpu-gpu-transfer", step=i, epoch=epoch) as transfer:
            images = images.to(device)
            target = target.to(device)
        with dft_event_logging("compute", name="model-compute-forward-prop", step=i, epoch=epoch) as compute:
            output = model(images)
            loss = criterion(output, target)
        with dft_event_logging("compute", name="model-compute-backward-prop", step=i, epoch=epoch) as compute:
            acc1, acc5 = accuracy(output, target, topk=(1, 5))
            losses.update(loss.item(), images.size(0))
            top1.update(acc1[0], images.size(0))
            top5.update(acc5[0], images.size(0))

  ...
  # At the end of main function
  log_inst.finalize()

Job submition script

  export MODULEPATH=/soft/modulefiles/conda/:$MODULEPATH
  module load 2023-10-04
  conda activate./dlio_ml_workloads/PolarisAT/conda-envs/ml_workload_latest_conda

  export LD_LIBRARY_PATH=$env_path/lib/:$LD_LIBRARY_PATH
  export DFTRACER_LOG_LEVEL=ERROR
  export DFTRACER_ENABLE=1
  export DFTRACER_INC_METADATA=1
  export DFTRACER_INIT=PRELOAD
  export DFTRACER_DATA_DIR=./resnet_original_data #Path to the orignal resnet 50 dataset
  export DFTRACER_LOG_FILE=./dft_fn_posix_level.pfw

  LD_PRELOAD=./dlio_ml_workloads/PolarisAT/conda-envs/ml_workload_latest_conda/lib/python*/site-packages/dftracer/lib/libdftracer_preload.so aprun -n 4 -N 4 python resnet_hvd_dlio.py --batch-size 64 --epochs 1 > dft_fn 2>&1

  cat *.pfw > combined_logs.pfw # To combine to a single pfw file.

Integrated Applications¶

Here is the list applications that currently use DFTracer.

DLIO Benchmark
MuMMI
Resnet50 with pytorch and torchvision

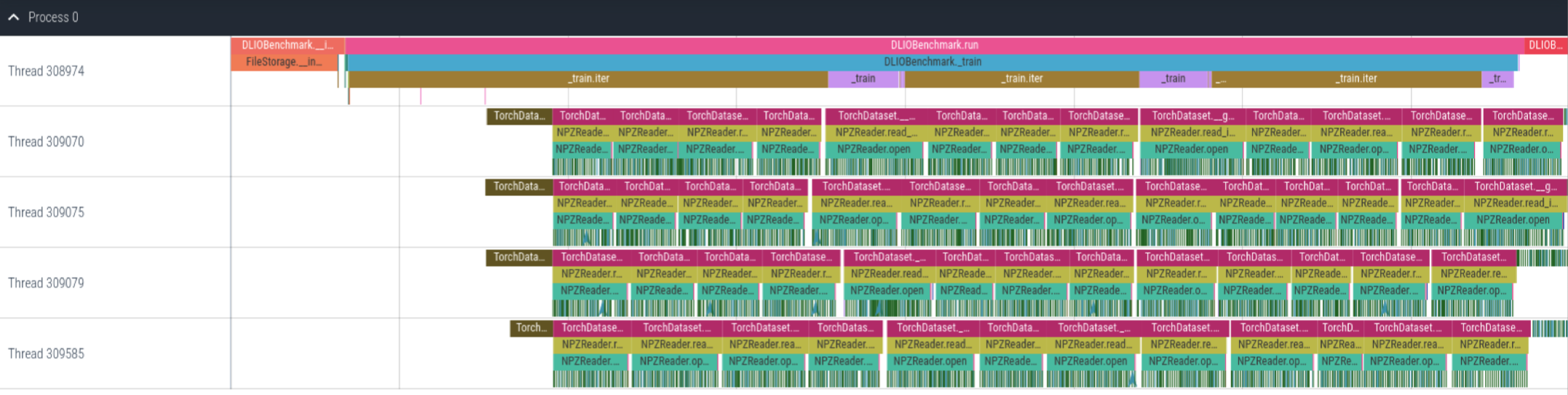

Example Chrome Tracing Plots¶

Example of Unet3D application with DLIO Benchmark. This trace shows the first few steps of the benchmark. Here, we can see that we can get application level calls (e.g., train and TorchDataset) as well as low-level I/O calls (dark green color).
